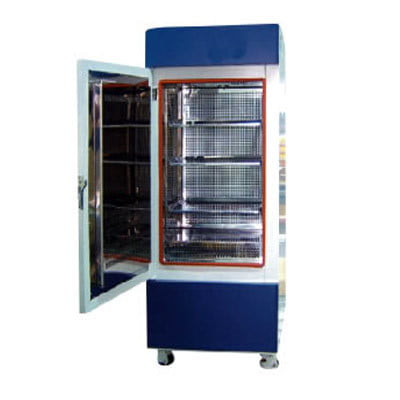

Clean Air Oven Manufacturer
We, Roch Mechatronics Inc. are proud to introduce ourselves as the leading manufacturer and supplier of Clean Air Oven. The range of Clean Air Oven is broadly acknowledged for high strength, ability to withstand adverse conditions, low running cost, distort free operation and longer service life. Clean Air Oven is a specialized piece of laboratory or industrial equipment designed to provide a controlled environment with filtered air. Typically from ambient temperature to 250°C, ULPA (Ultra-Low Penetration Air) filters are often used to remove particles as small as 0.3 microns or smaller,Filter Efficiency ≥ 99.99% removal rate for particles.
Leading the Heat Revolution: Your Trusted Clean Air Oven Manufacturer
At Roch Mechatronics Inc. we offer a perfect range of Clean Air Oven, with a high-efficiency air filtration system, often equipped with HEPA or ULPA filters, to maintain a contaminant-free atmosphere. We manufactured Varies from small 20 liters to larger units of 1000 liters or more. Common laboratory models range from 50 to 500 liters. We also manufacturer of Hot Air Oven. Our Clean Air Oven is recognized for its quality, With their ability to create a particle-free environment, clean air ovens play a crucial role in industries that require strict hygiene and precise conditions, such as the medical, food, and electronics sectors.
Chamber Construction:
- Inner Chamber: Stainless steel (SS 304/316 grade, corrosion resistant)
- Exterior Body: Powder-coated mild steel or stainless steel for durability
- Insulation: High-grade mineral/glass wool for minimal heat loss
- Shelves: Removable stainless steel wire mesh/perforated trays (adjustable)
- Doors: Double-walled insulated door with gasket and toughened glass viewing window (optional)
Safety Features:
- Over-temperature protection
- Automatic cut-off for heater in case of malfunction
- Audible/visual alarms for deviations
- Power Supply: 220–240V AC, 50Hz / 110V AC, 60Hz (customizable for exports)
- Models Available: Bench-top and floor-standing designs with different chamber volumes (30 L to 300 L or more)
- Optional Accessories: RS-232/USB data logging, validation port, HEPA/HEGA filters for particle-free environment
Our Products
Clean Air Oven Specifications
| Specification | Details |
|---|---|
| Product Name | Clean Air Oven |
| Oven Type | HEPA Filtered Clean Air Hot Air Oven |
| Temperature Range | Ambient +10°C to 250°C |
| Temperature Accuracy | ±1°C |
| Temperature Uniformity | ±2°C |
| Display | Digital LED / LCD Display |
| Controller | Microprocessor Based PID Controller |
| Air Circulation | Forced Air Circulation |
| Heating System | Stainless Steel Tubular Heaters |
| Cleanliness Class | Class 100 (ISO 5) with HEPA Filter |
| HEPA Filter Efficiency | 99.97% at 0.3 Micron |
| Air Velocity | 0.3 to 0.5 m/s |
| Inner Chamber Material | SS304 Stainless Steel |
| Outer Body | Powder Coated Mild Steel |
| Insulation | High Density Mineral Wool |
| Door Type | Single Door with Silicone Gasket |
| Observation Window | Toughened Glass Window |
| Shelves | Adjustable Stainless Steel Shelves |
| Timer | 0–999 Minutes Digital Timer |
| Safety Features | Over Temperature Protection |
| Alarm | Audio Visual Alarm |
| Power Supply | 220–240V AC, 50 Hz |
| Mobility | Optional Heavy Duty Castor Wheels |
| Validation Port | Optional |
| Data Logging | Optional USB / RS485 Communication |
| Model | Capacity | Suitable Applications |
|---|---|---|
| CAO-28 | 28 Litres | Small Laboratory Applications |
| CAO-45 | 45 Litres | Research Laboratories |
| CAO-90 | 90 Litres | Pharmaceutical Testing |
| CAO-150 | 150 Litres | Electronics Drying |
| CAO-250 | 250 Litres | Medical Device Manufacturing |
| CAO-400 | 400 Litres | Semiconductor Industry |
| CAO-600 | 600 Litres | Industrial Clean Drying |
| CAO-1000 | 1000 Litres | Large Scale Manufacturing |
