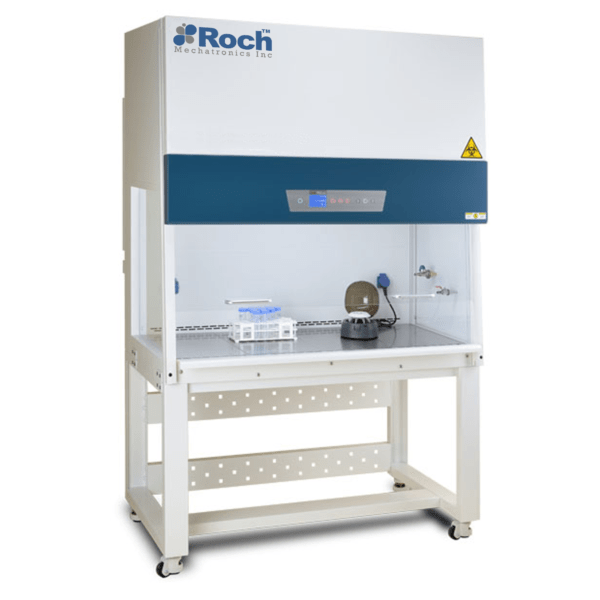

Laminar Air Flow

Laminar Air Flow Manufacturer

Laminar Air Flow

FEATURES

  • 99.99% Particle Removal Class 100 HEPA Filter.
  • Air Velocity Control.
  • Clean air velocity
  • UV, FL Lamp.
  • Filter Replacement Warning Lamp.
  • The main body is made of Stainless steel 304/316 Grade OR G.I. steel duly powder coated.
  • Working table made of corrosion & rust free S. S. 304/316 Grade.
  • Perforated stainless steel diffuser screen is fitted to protect HEPA filter and to maintain uniform air flow velocity within the work area.
  • HEPA filtration unit provides Class 100 air quality.
  • Total leak proof airflow system.
  • Front Door made of UV resistance Poly Carbonate Sheet (Transparent).
  • 10 degree sloped front with Counter balanced Front Door (Sliding Type).
  • Static pressure Manometer.
  • Statically Balanced motor blower Assembly ISI marked standard make (Heavy Duty).
  • Slide Type Door with acrylic/tempered safety glass, durable powder coated body and stainless steel work table.
  • Built-In Lamps and Utilities UV and Fluorescent Lamp, air and gas cock, power consent.
  • Whole cabinet made of stainless steel.
  • Air/Gas Regulator.

Roch Laminar airflow manufacturer is designed for Industrial, Pharma, Biotech, and Medical research applications.

  1. Clean benches are designed to protect biological specimens by bathing the work area with HEPA-filtered air that is free of particulate contamination. They were developed as an adjunct to cleanroom technology (the need to protect the work from contamination).
  2. Roch Laminar Air flow stands tall where air steams cross over is literally not seen. The laminar generated uniform speed moving in one direction all over the Laminar Air Flow cabinet. Thus creating a sterile working environment helps us to carry out specialized particle-free working in Vertical Laminar Air Flow.
  3. Roch Laminar flow clean benches are work benches or similar enclosures, which have their own filtered air supply. Laminar airflow is airflow in which the entire body of air within a confined area moves at a unidirectional velocity along parallel flow lines. In such cases, the fluid flow is free of macroscopic fluctuations. Aside from the HEPA filter rating, clean benches are also rated according to their Air Cleanliness Class.
  4. Roch Laminar Air flow Stand is a safety device that protects individuals, the environment, and products. During Operations, it helps avoid exposure to possible infectious aerosols and spills for the operation of experimental material of bio-hazardous, natural microbial strains, or clinical diagnostic inspection samples.
  5. This Laminar Air flow stand is widely used in biological experiments; it is the most important barrier (Primary Barrier) and front-line defense for the safety of the operator.

CONTROL

  • Large Display of laminar air flow features a Power-on-switch, 16 x 2 LCD Alphanumeric display showing the Controlling of the different parameters with touch keys to control the different parameters.
  • The Menu Driven system allows the user to set multiple parameters easily.
  • Simple to use and operate keys for U.V Light On/Off, F.L Light On/Off, Blower on/Off, Alarm key.
  • Alarm indication on timer completion process.
  • Password protection.
  • LED indication for all outputs.
  • U.V light and Blower Output will automatically get switched off after their respective set time is over.
  • Shown below is the back connections strip cum wiring diagram of the laminar controller.
  • LCD Display: Airflow velocity, UV timer, UV work time, system work time, and real-time.
  • UV lamp: Emission of 30W 254nanometers for most efficient decontamination.

Construction

  • The inner chamber is made of stainless steel-304 with rounded angles for easy cleaning and user safety from any physical cuts.
  • The working chamber is made of Single-piece stainless steel S. S. 304/316 Grade with round corners for easy cleaning.
  • Smooth finish interior and exterior ensure no risk of cuts to the user or maintenance personnel.
  • Robust construction outer body made of Electro-galvanized steel duly powder coated.
  • Front 10° slanted to offer operator comfort while working for a long time.
  • HEPA Filter life and UV Life indicator.
  • Automatic air speed adjustable with filter block.
  • Audio and visual alarm (Filter replacement, Window over height, abnormal Air flow velocity etc.)
  • Manual sliding window with external pneumatic piston to facilitate maintenance and internal cleaning of the cabinet.
  • Single piece removable stainless steel 304 perforated working surfaces.
  • Stand with a lockable castor wheel for easy movement.
  • Hardness security glass at the front

         TECHNICAL SPECIFICATION

MAKEROCHMECHATRONICS INC...
MODELLAF-222LAF-322LAF-422LAF-522LAF-622
Sizes Available2ft, 3ft, 4ft, 5ft and 6 ft....
ConstructionSS 304 /316 / Powder coated MS or GI sheet....
Work topSS 304 /316....
ControllerON/Off switches for Cabinet, Light & Blower....
Air filtrationHEPA filter 99.99% efficiency....
Noise levelLess than 60 decibel....
Standard FittingsMagnehelic pressure gauge Fluorescent lamp....
.UV light....
OptionalMicroprocessor based controller system/....
.Digital display of real time inflow / down flow air velocities Alarm for variation in air flow and blocked blower/ Side glass window....
.Sash height alarm UV hour meter Virus burnout....
.Service valves (gas, vacuum, air & water) Electrical sockets....
.Differential pressure sensor Arm / elbow rest....
.Drain pan on work bench Movable stand (wheels) Foot rest....
.Calibration certificates HMI Controller, Motorized Front Window....
