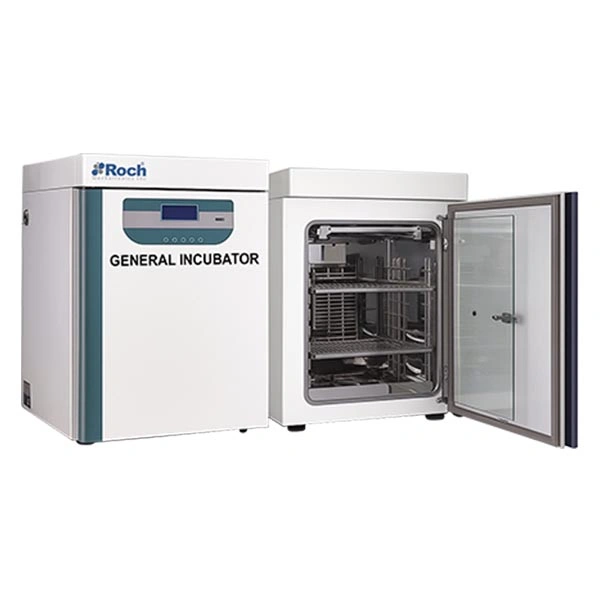

General Incubator
ROCH Mechatronics Inc. is a trusted manufacturer, supplier and exporter of high-quality General Incubators in India and across global markets. Designed with advanced technology, our incubators ensure precise temperature control, uniform heating and reliable performance for laboratories and research applications. With robust construction and user-friendly operation, they provide durability, accuracy and consistent results. Available in multiple sizes and specifications, these incubators cater to diverse industrial and scientific needs. ROCH Mechatronics Inc. delivers innovation, efficiency and global standards with every General Incubator.
Roch Mechatronics Inc. offers a General Incubator with SS-304 inner structure and more features.
General Incubator Specifications:
- Ambient to 70°C Range Microprocessor/PID/Digital Control Digital Set and Readout.
- Forced Convection Uniform Temperature Control
- Electronic Control with Safety Backup
- Optional Humidifier
- Optional RS-485 Communication Interface ¢Ó
- Optional Mobile Alert Control System
Laboratory General Purpose Incubators are designed specially to allow the users hassle-free operation access in production and multiplication of cultures. The IVF laboratories, diagnostic labs, and research scientist devices best standards due to the flexibility of multi-chamber access.
General Incubator Specifications
| Specification | Details |
|---|---|
| Product Name | General Laboratory Incubator |
| Incubator Type | Forced Air / Natural Convection |
| Temperature Range | Ambient +5°C to 70°C |
| Temperature Accuracy | ±0.5°C |
| Temperature Uniformity | ±1°C |
| Controller | Microprocessor Based PID Digital Controller |
| Display | Digital LED/LCD Display |
| Timer | 1 Minute to 999 Hours |
| Inner Chamber Material | SS304 Stainless Steel |
| Outer Body | CRCA Mild Steel with Powder Coated Finish |
| Insulation | High Density Mineral Wool |
| Shelves | Adjustable Stainless Steel Shelves |
| Door Type | Solid Door with Magnetic Gasket |
| Viewing Window | Toughened Glass Window (Optional) |
| Air Circulation | Forced Air Circulation with Blower |
| Heating System | Stainless Steel Tubular Heaters |
| Sensor | PT-100 RTD Temperature Sensor |
| Safety Features | Over Temperature Protection & Audio Visual Alarm |
| Temperature Stability | ±0.5°C |
| Ventilation | Adjustable Air Vent |
| Power Supply | 220-240V AC 50 Hz Single Phase |
| Power Consumption | 0.5 kW to 2.5 kW (Depending on Model) |
| Optional Features | Data Logger USB Port Ethernet Touch Screen Controller BMS Connectivity |
| Applications | Microbiology Laboratories Research Institutes Pharmaceutical Food Testing Hospitals Universities Quality Control Laboratories |
| Model | Capacity | Internal Dimensions (W×D×H mm) | Suitable Applications |
|---|---|---|---|
| GI-35 | 35 Litres | 300×300×400 | Small Laboratory Applications |
| GI-60 | 60 Litres | 400×350×450 | Routine Sample Incubation |
| GI-90 | 90 Litres | 450×450×450 | Microbiology Laboratories |
| GI-150 | 150 Litres | 500×500×600 | Pharmaceutical Testing |
| GI-250 | 250 Litres | 600×600×700 | Research Laboratories |
| GI-350 | 350 Litres | 700×700×700 | Quality Control Laboratories |
| GI-500 | 500 Litres | 800×700×900 | Industrial Laboratories |
| GI-1000 | 1000 Litres | 1000×900×1100 | Large Scale Research & Production |
